NANTAI NTS205 NTS206 Portable Low Price Common Rail Injector EPS 205 Test Bench NTS205 Common Rail Injector Test Bench

Short Description:

NTS205 is NANTAI factory classical common rail injector test bench.

It is a portable test bench which can put in car and take outside for diesel vehicle service, very convenient. It has a very innovative shape and has been welcomed by customers all over the world as soon as it came out.

Send email to us

Product Detail

Product Tags

NTS205 Introduce

1. NTS205 Test bench is our classical model test bench for high-pressure common rail injector testing, controlled by industrial computer, Windows operating system.
2. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
3. It adopts original CP3 common rail pump to provide 0~2000 bar for rail pressure.
4. The rail pressure can be adjusted automatically,and it also provide pressure overload protect.
5. It can test common rail injector of all brands.
6. Advanced technology, steady performance, precise measurement and convenient operation.
7. Now our software already have more than 5000pcs injector data.

Functions of NTS205 common rail injector test bench

1. Test common rail injector brands: All Brands
2. Test 1 piece of injector
3. Also can test piezo injectors.
4. Test the Leakage performance of common rail injector.
5. Test the injector inductance.
6. Injection oil quantity and back oil quantity(pre-injection, idling, emissions, full load).
7. Electronic fuel delivery measuring, automatic testing and detection.

8. Data can be searched and saved.
9. QR coding function.
10. Also can add the BIP function if you need, this is an optional function. BIP means injector response time testing.

Machine Details of NTS205 common rail injector test bench

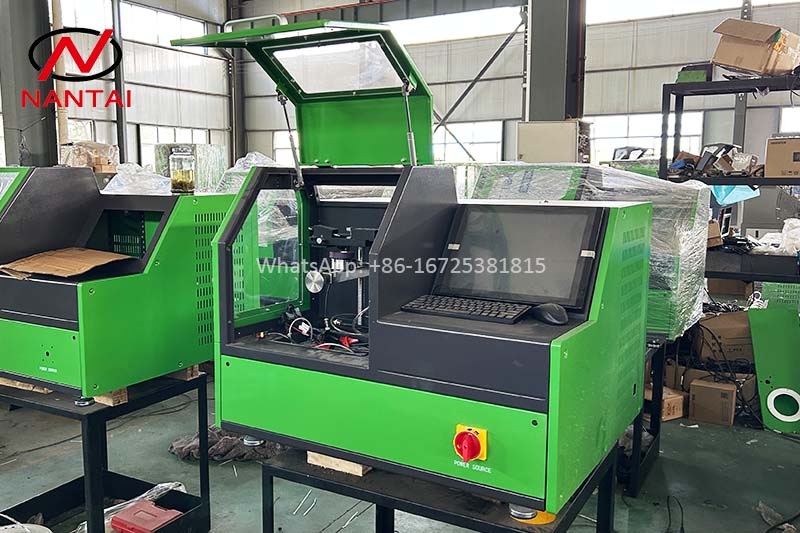

nts205 common rail injector test bench-1

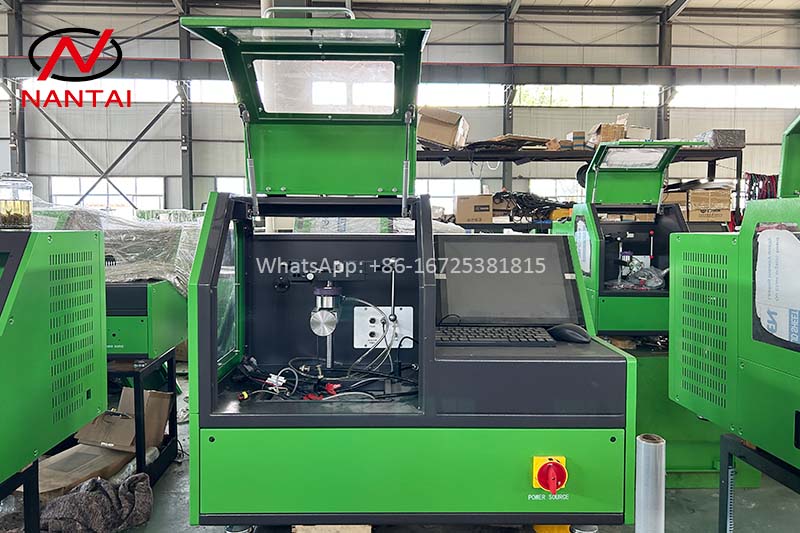

nts205 common rail injector test bench-2

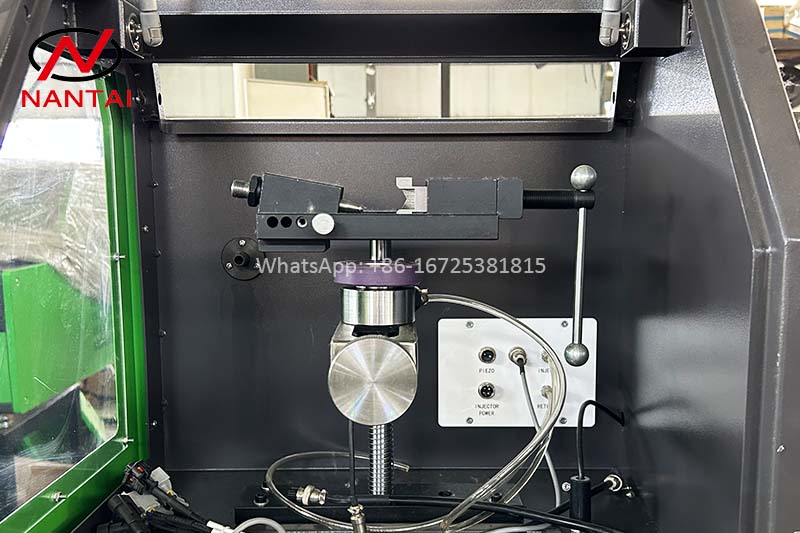

nts205 common rail injector test bench-3

Parameters of NTS205 common rail injector test bench

Output Power	3.8kw
Power Voltage	220V, 1ph
Motor Speed	0~2500rpm
Oil Pressure	0-2800 bar
Flow Measure Range	0-600ml/1000times
Flow Measurement Accuracy	0.1ml
Temperature Control Range	40+-2
Packing Size	10.880.87m
Net Weight	145kgs
Gross Weight	170kgs
