NANTAI PT301 PT 301 CUMMINS PT njector Leakage Tester PT301 Diesel Fue lnjector Seal Stand Test Bench
PT301 Introduce
It is special equipment used to provide seal test for PT CUMMINS Fuel injectors. It has quick sampling speed, extraordinary property, and convenient operation.
Fit for: 5/16" and 3/8"PTB, PTC, PTD and 3/8" overhead PTD fuel injectors seal test.
PT301: https://youtu.be/tKV0E_paWNo
PT301 Functions
-
- PT fuel injector cylinder block seal
- PT fuel injector cylinder seal
- PT fuel injector ball check valve seal

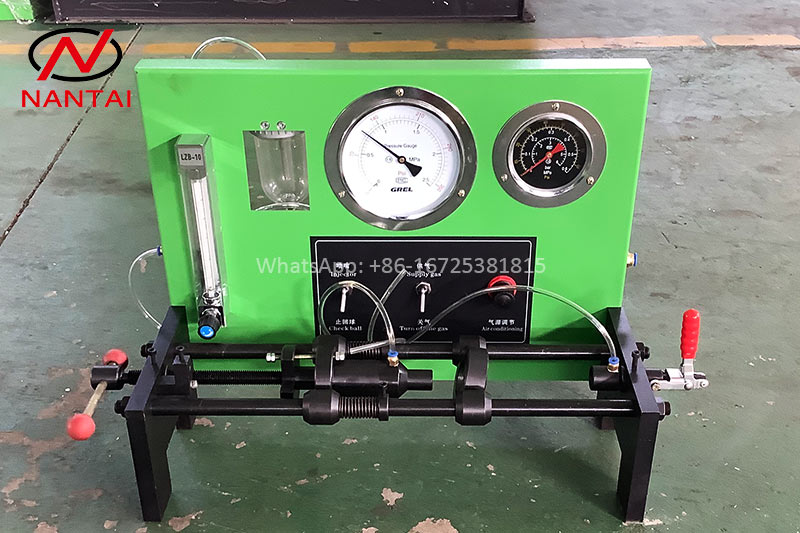

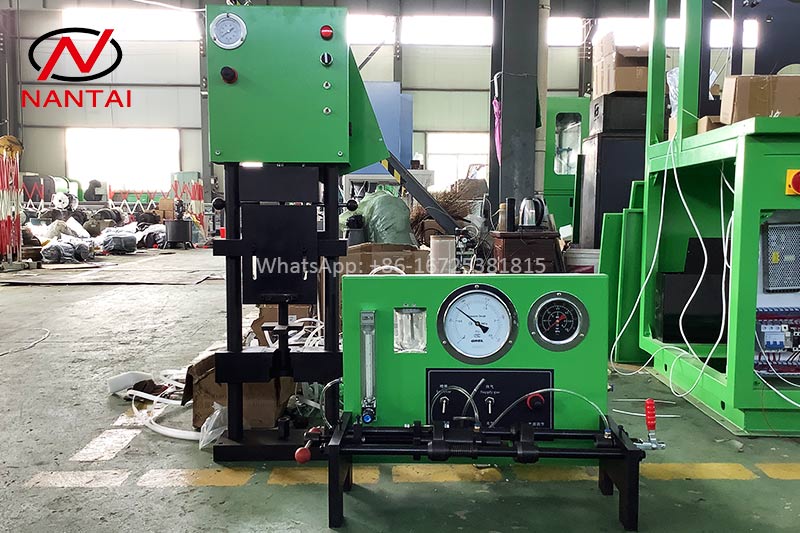

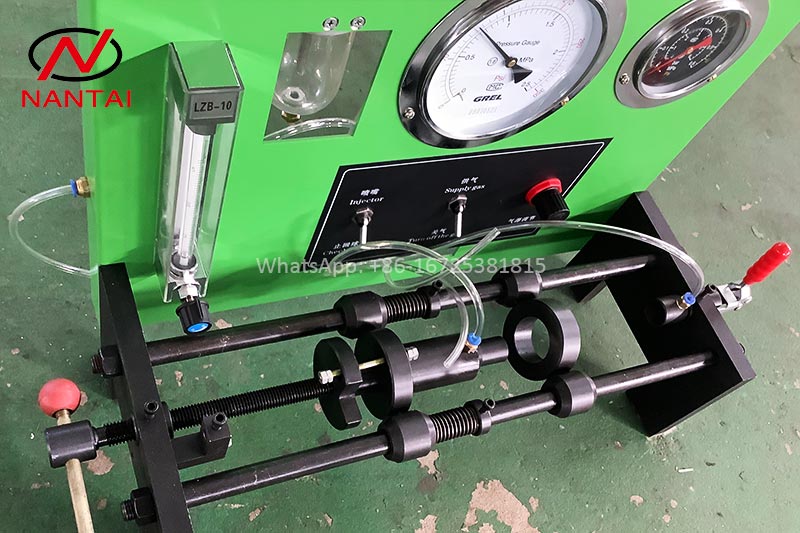

Machine Details of PT301 test bench
Parameters of PT301 test bench
| Number of fuel injector | 1pc |
| Supply pressure | 80 PSI |
| Fuel injector clamping force | 1960N |
| Air test flow | 5-15 ML/MIN |
| Dimension of stand | 740*360*620 (L*W*H)mm |
| Weight | 0-150ML/MIN30KGS |
