NANTAI PT101 Top Stop Setting Fixture PT101 Cummins Injector Leakage Test Bench
PT101 Introduce
This Top Stop Setting Fixture used to the test of the injector. After the leakage testing of the injector is completed, the injector can be assembles to the point where the plunger top stop, or plunger travel setting can be made.
PT101 video: https://youtu.be/HC_o7_AFP3c
PT101 Main technical parameters
- 1. Working pressure: 550±20KPa(80±3psi)
2. Static weight: 2.3kg(5lbs)
3. Power supply voltage: 220V 50Hz
4. The debugging tolerance: ±0.01mm
5. The scope of verification: ±0.01

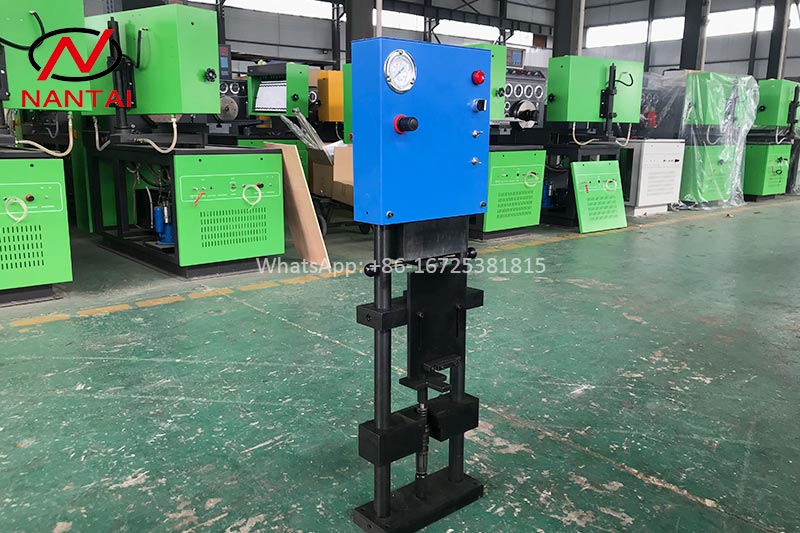

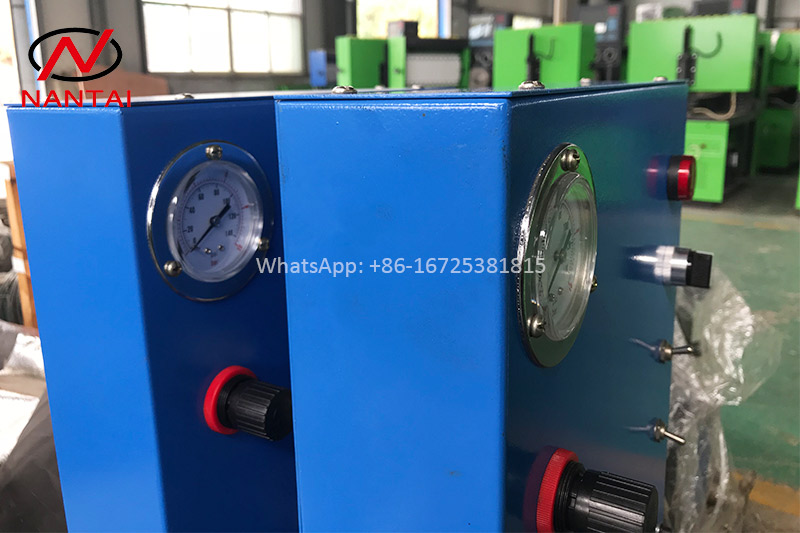

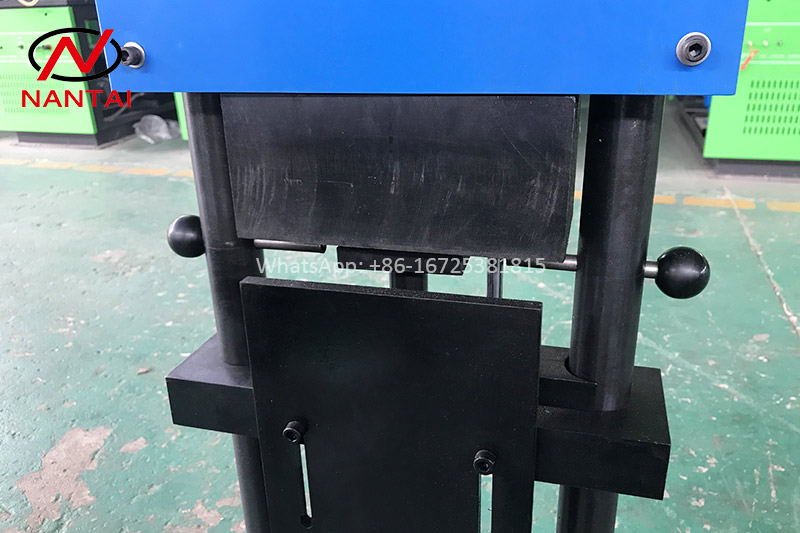

Machine Details of PT101 test bench
