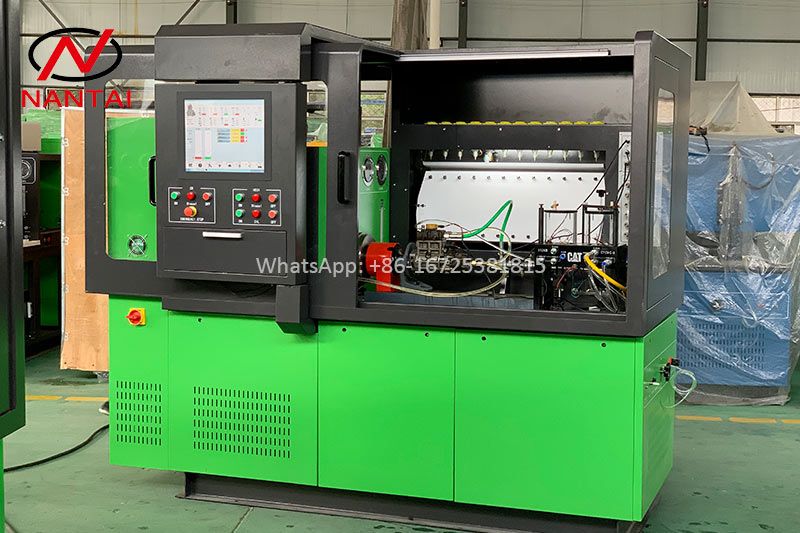

NANTAI NTS815A Multi-Function Test Bench Common Rail CRI CRP Test Bench Diesel Fuel Injection Pump Test Bench HEUI HEUP EUI EUP Test Bench
NTS815A Introduction
NTS815A multi-function test bench, integrates test functions such as high-pressure common rail, medium-pressure common rail, and mechanical pump in the same device, all-in-one, very popular during these years.
Can be widely measure Bosch, Denso, Delphi, Siemens and other common rail pump and injector, the software system is equipped with more than 3200 injector datas and more than 980 pump datas, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.
And for NTS815A shape, our design team has been upgrade many times, and we also can customized function and shape and color as your request.
Technical Parameters
| Model | NTS815A |
| Electronic power | 3Phase 380V or 3Phase 220V |
| Output power | 11KW for standard; 15KW, 18.5KW, 22KW for optional |
| Motor speed | 0-4000RPM |
| Pressure adjustment | 0-2300bar |
| Flow testing range | 0-600ml/1000times |
| Flow measurement accuracy | 0.1 ml |
| Temperature range | 40+-2 |
Function
|
Function |
|
|
Standard |
Common Rail Injector Testing of BOSCH DENSO DELPHI SIEMESN and PIEZO |
|
Common Rail Pump Testing |
|
|
HP0 pump testing |
|
|
Mechanical Pump Testing (Diesel Fuel Injection Pump Testing) |
|
|
Check the inductance of the fuel injectors |
|
|
Coding for BOSCH DENSO DELPHI SIEMENS... |
|
|
Optional |
Can test 6 injector |
|
Test 6pcs injector at same time, with 6pcs flowmeter sensors. |
|
|
CAT HEUI Injector(CAT C7/C9/C-9,CAT3126 Injector Testing) |
|
|
EUI/EUP testing, we have 3 type CAMBOX. |
|
|
HPI testing, with two new actuators |
|
|
HPI testing, with two remanufactured actuators |
|
|
VP44 Pump Testing |
|
|
VP37 Pump Testing |
|
|
RED4 Pump Testing |
|
|
DENSO V3 V4 V5 pump Testing |
|
|
CAT C7/C9 Pump Testing |
|
|
CAT 320D Pump Testing |
|
|
BIP Testing for common rail injectors |
|
|
AHE testing |
|
|
external diesel fuel cooler |
|
|
Forced cooling system, inside of test bench |
