NANTAI NTS300 Common Rail Injector Test Bench with Glass Tube Flow Measurement System

Short Description:

1. NTS300 Test bench is our classical model for testing common rail injector, controlled by industrial computer, Windows operating system.

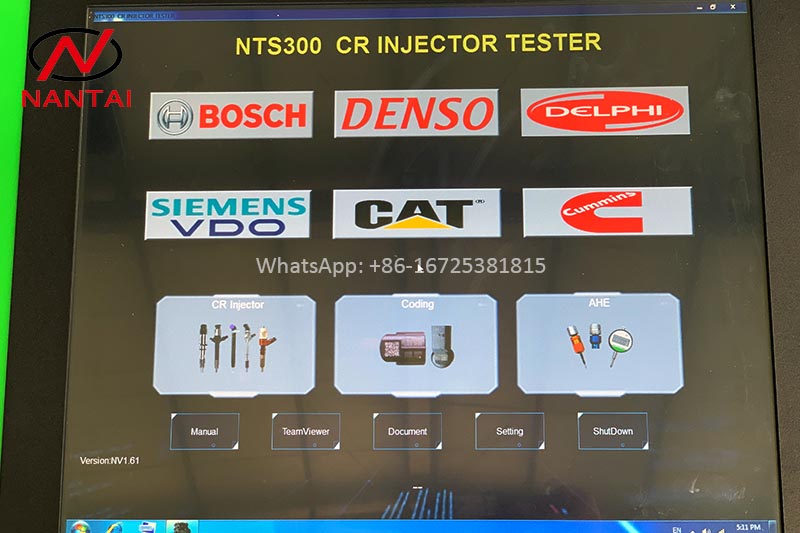

2. The fuel quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
3. It adopts original CP3 common rail pump to provide 0~2800 bar for rail pressure.
4. The rail pressure can be adjusted automatically,and it also provide pressure overload protect.
5. It can test common rail injector of all brands.
6. Advanced technology, steady performance, precise measurement and convenient operation.
7. Now our software already have more than 7000pcs injector data.

Send email to us

Product Detail

Product Tags

NTS300 Introduce

Functions of NTS300 common rail injector test bench

Standard:

1. Fully automatic detection of electromagnetic injectors of various brands and models, such as BOSCH, DELPHI, DENSO, SIEMENS, etc.

2. Automatic detection of all piezoelectric injectors.

3. Injector coding can be generated, including Bosch IQA/IMA/ISA, Denso 16/22/24/26/28/30/32 QR, Delphi C2I/C3I, Siemens IIC.

4. Injector solenoid valve inductance, capacitance detection.

5. Can display the injector real-time drive curve.

6. Online remote assistance and system upgrades are available.

Optional:

7. BIP: Detect the response time of the injector.

8. Detect the dynamic stroke of the injector AHE.

9. Extra glass tubes flow measurement system.

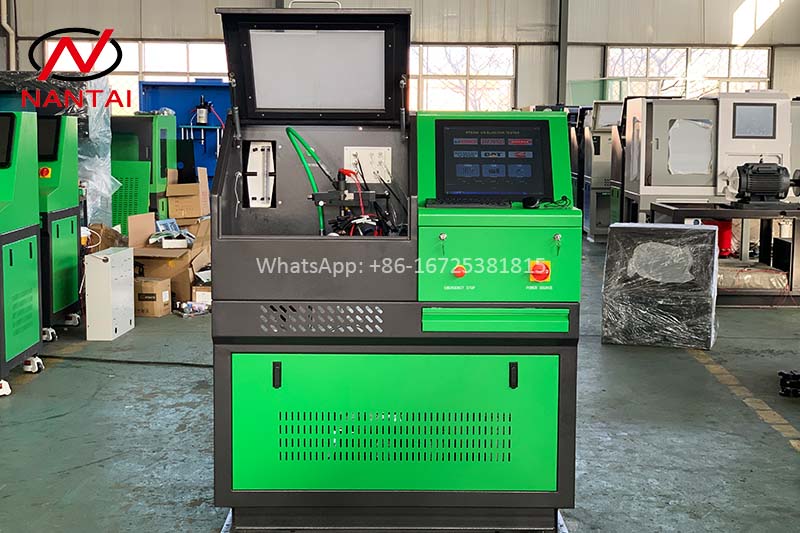

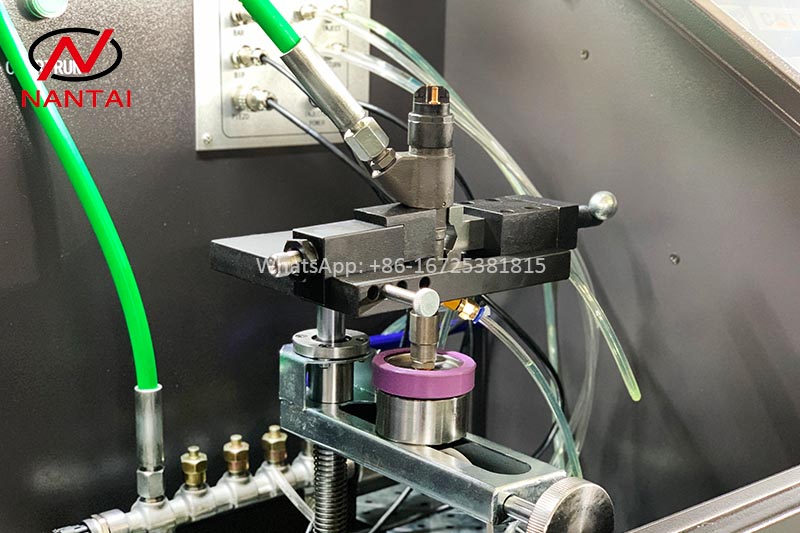

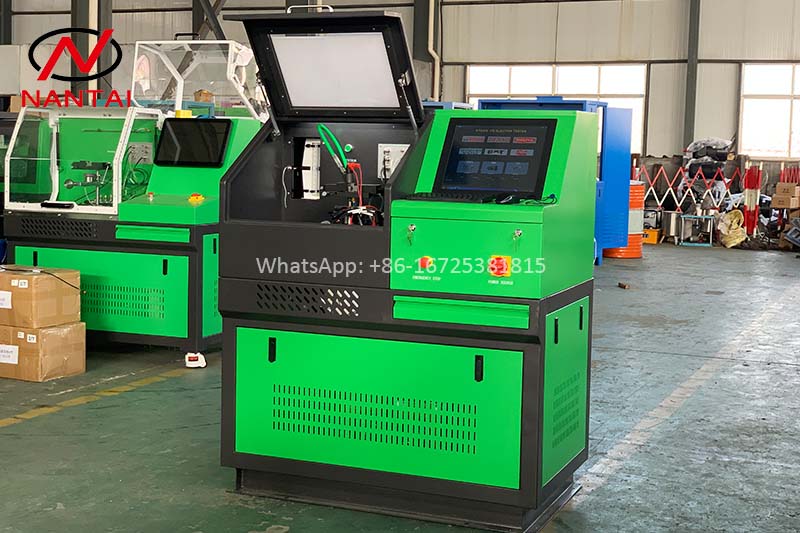

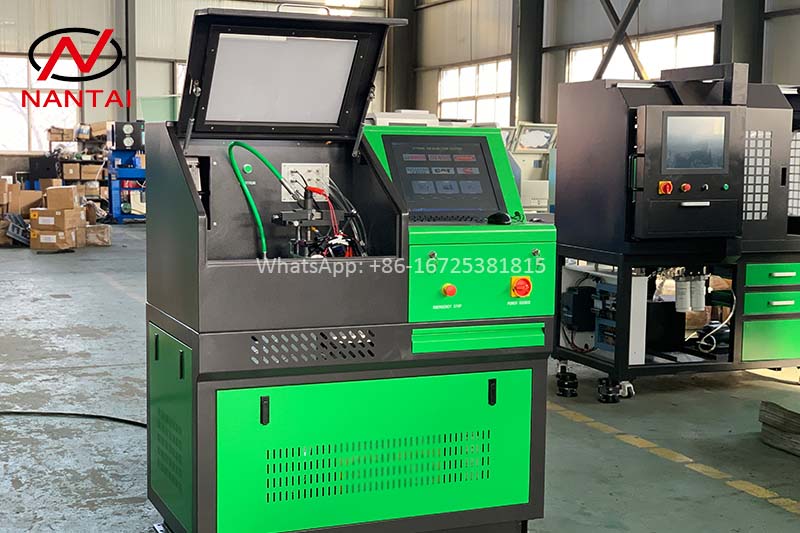

Machine Details of NTS300 common rail injector test bench

Parameters of NTS300 common rail injector test bench

Output Power	4Kw
Working Voltage	380V, 3Ph (220V 3Ph/1Ph for optional)
Pressure Range	0-2800bar
Motor Speed	0-4000rpm
Flow Rate Range	0.008-4L/min
Accuracy	0.30%
