NANTAI NTS208 Common Rail Injector Test Bench CRDI CRI CR Injector Test Bench

NANTAI NTS208 Common Rail Injector Test Bench CRDI CRI CR Injector Test Bench Featured Image
  • NANTAI NTS208 Common Rail Injector Test Bench CRDI CRI CR Injector Test Bench
  • NANTAI NTS208 Common Rail Injector Test Bench CRDI CRI CR Injector Test Bench

Short Description:

NTS208 is NANTAI factory new design mini common rail injector test bench.

It is a portable test bench which can put in car and take outside for diesel vehicle service, very convenient. It has a very innovative shape and has been welcomed by customers all over the world as soon as it came out.


Product Detail

Product Tags

NTS208 Introduce

1. NTS208 Test bench is our latest Independence researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system.
2. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
3. It adopts original CP3 common rail pump to provide 0~2000 bar for rail pressure.
4. The rail pressure can be adjusted automatically,and it also provide pressure overload protect.
5. It can test common rail injector of all brands.
6. Advanced technology, steady performance, precise measurement and convenient operation.
7. Now our software already have more than 5000pcs injector data.

Functions of NTS208 common rail injector test bench

Standard:

1. Fully automatic detection of electromagnetic injectors of various brands and models, such as BOSCH, DELPHI, DENSO, SIEMENS, etc.

2. Automatic detection of all piezoelectric injectors.

3. Injector coding can be generated, including Bosch IQA/IMA/ISA, Denso 16/22/24/26/28/30/32 QR, Delphi C2I/C3I, Siemens IIC.

4. Injector solenoid valve inductance, capacitance detection.

5. Can display the injector real-time drive curve.

6. Online remote assistance and system upgrades are available.

Optional:

7. BIP: Detect the response time of the injector.

8. Detect the dynamic stroke of the injector AHE.

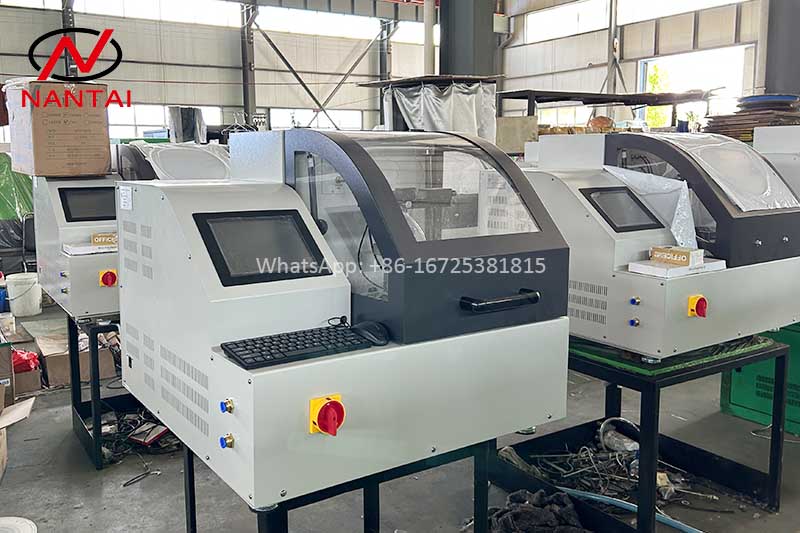

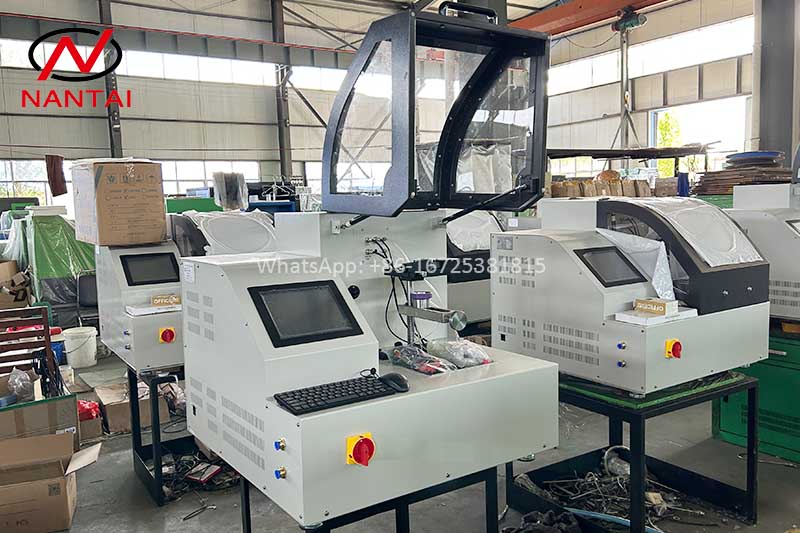

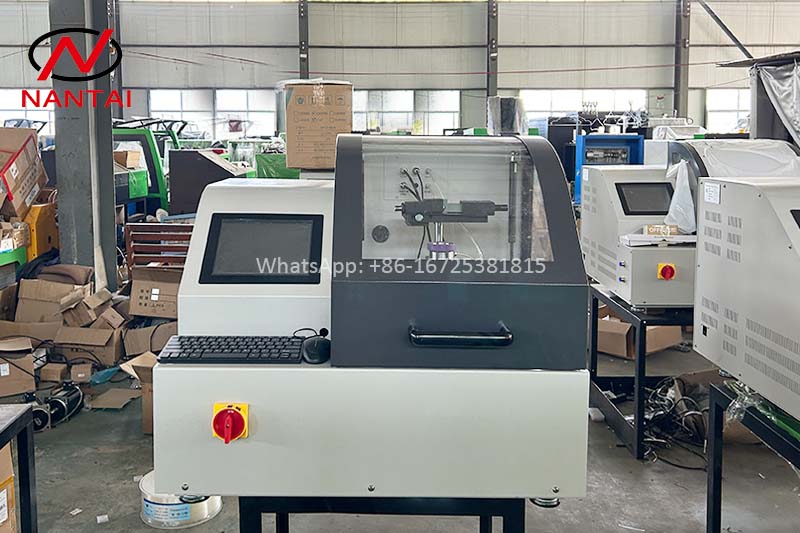

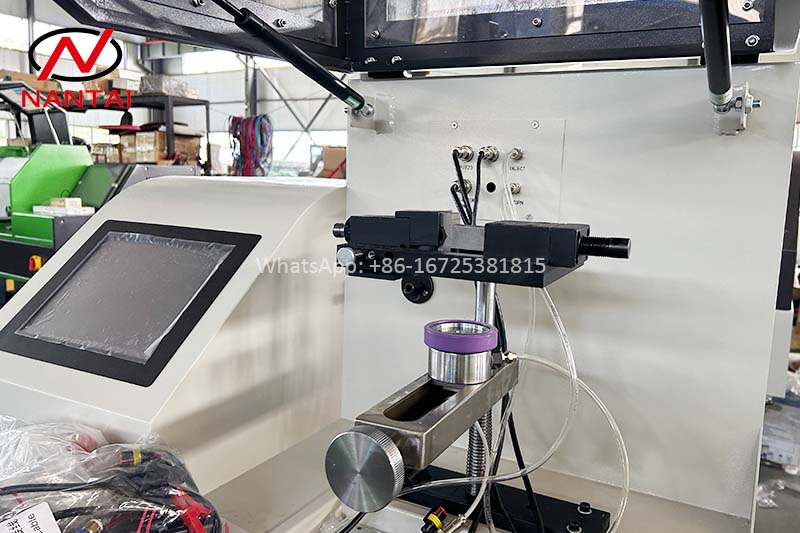

Machine Details of NTS208 common rail injector test bench

Parameters of NTS208 common rail injector test bench

Output Power

3.8Kw Servo motor

Working Voltage

220V, 1Ph

Pressure Range

0-2800bar

Motor Speed

0-2500rpm

Flow Rate Range

0.008-4L/min

Accuracy

0.30%
