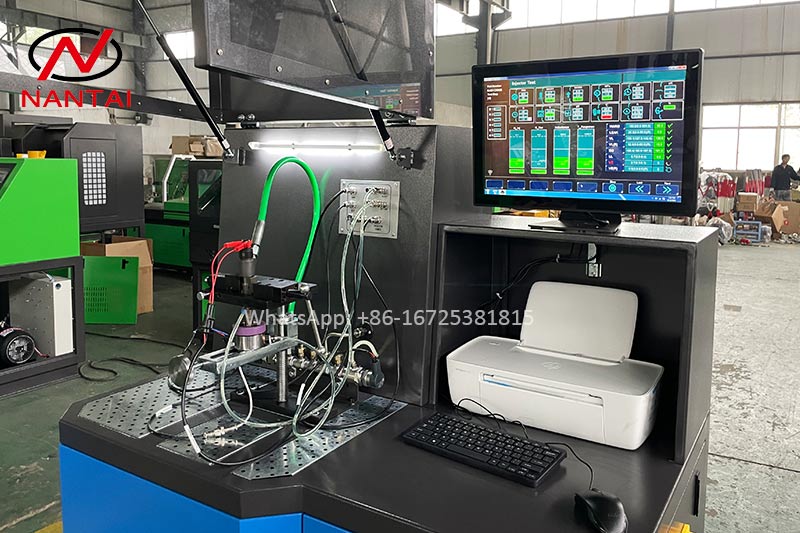

NANTAI NTI1000 NEW Design Diesel Common Rail Injector Test Bench with Printer

Short Description:

NTI1000 is NANTAI factory new design common rail injector test bench.

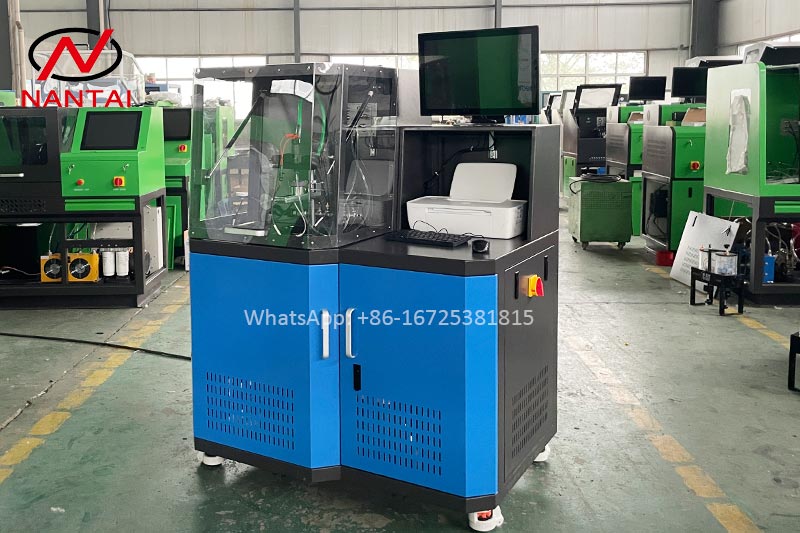

The transparent appearance makes it easier to observe the condition of the injector.
A laser printer is provided with the device, which is convenient for printing test reports directly.

Send email to us

Product Detail

Product Tags

NTI1000 Introduce

1. NTI1000 Test bench is our new design model test bench for high-pressure common rail injector testing, controlled by industrial computer, Windows operating system.
2. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
3. It adopts original CP3 common rail pump to provide 0~2000 bar for rail pressure.
4. The rail pressure can be adjusted automatically,and it also provide pressure overload protect.
5. It can test common rail injector of all brands.
6. Advanced technology, steady performance, precise measurement and convenient operation.
7. Now our software already have more than 5000pcs injector data.

8. With a Printer.

Functions of NTI1000 common rail injector test bench

1. Test common rail injector brands: All Brands
2. Test 1 piece of injector
3. Also can test piezo injectors.
4. Test the Leakage performance of common rail injector.
5. Test the injector inductance.
6. Injection oil quantity and back oil quantity(pre-injection, idling, emissions, full load).
7. Electronic fuel delivery measuring, automatic testing and detection.

8. Data can be searched and saved.
9. QR coding function.
10. Also can add the BIP function if you need, this is an optional function. BIP means injector response time testing.

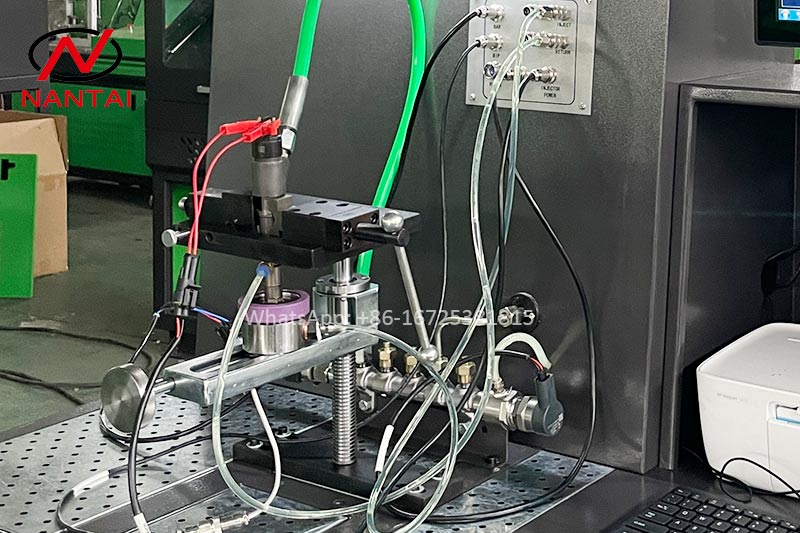

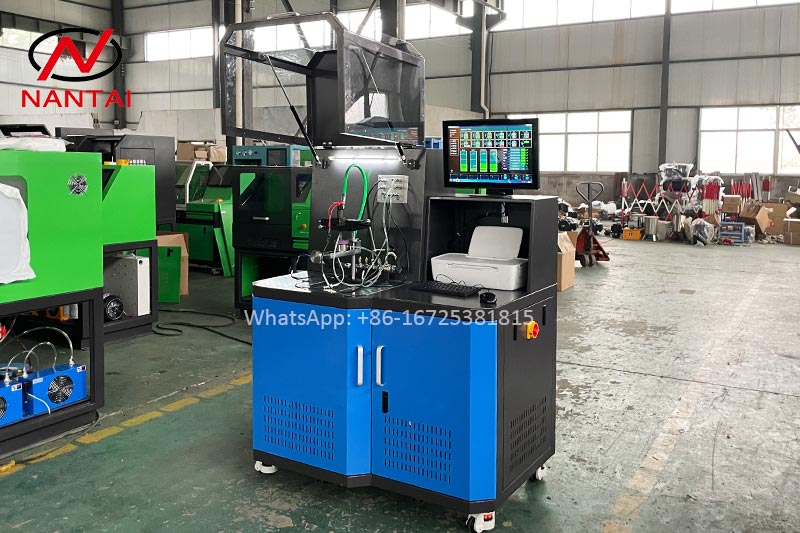

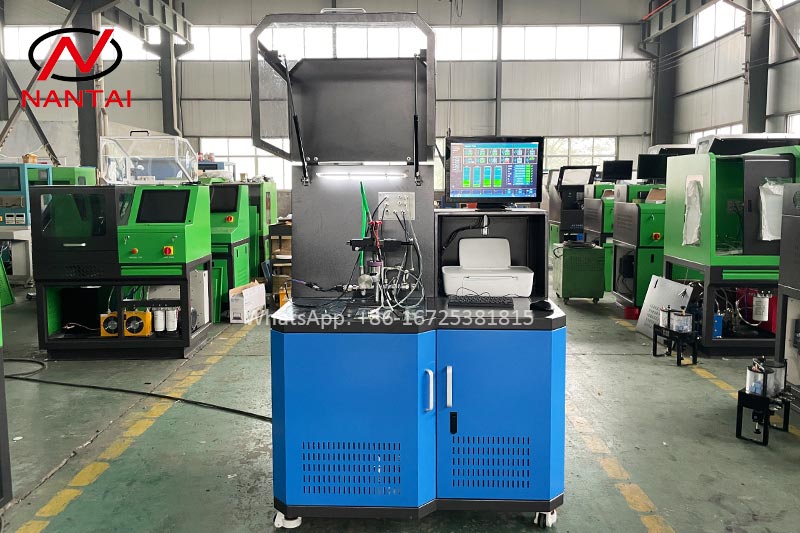

Machine Details of NTI1000 common rail injector test bench

Parameters of NTI1000 common rail injector test bench

Output Power	4kw
Power Voltage	380V 3PH/ 220V 3PH/ 220V 1ph
Motor Speed	0~3000rpm
Oil Pressure	0-2000 bar
Flow Measure Range	0-600ml/1000times
Flow Measurement Accuracy	0.1ml
Temperature Control Range	40+-2
Packing Size	1.3511.7m
Net Weight	350kgs
Gross Weight	400kgs
