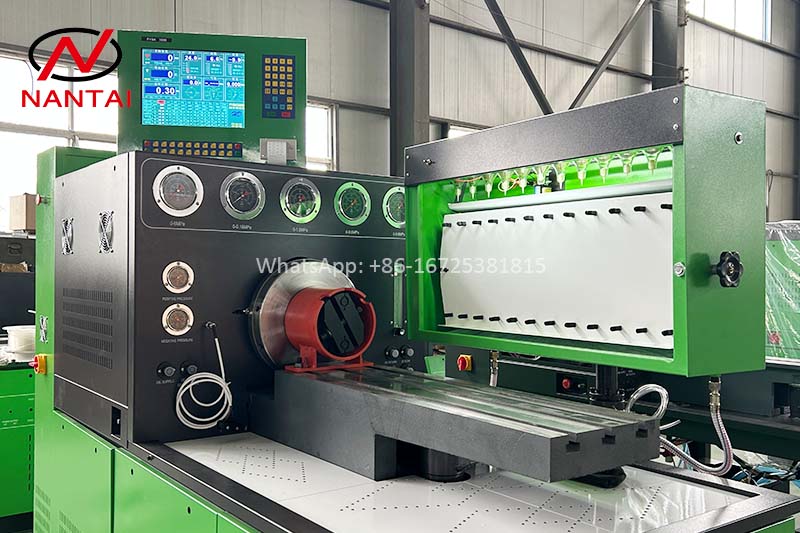

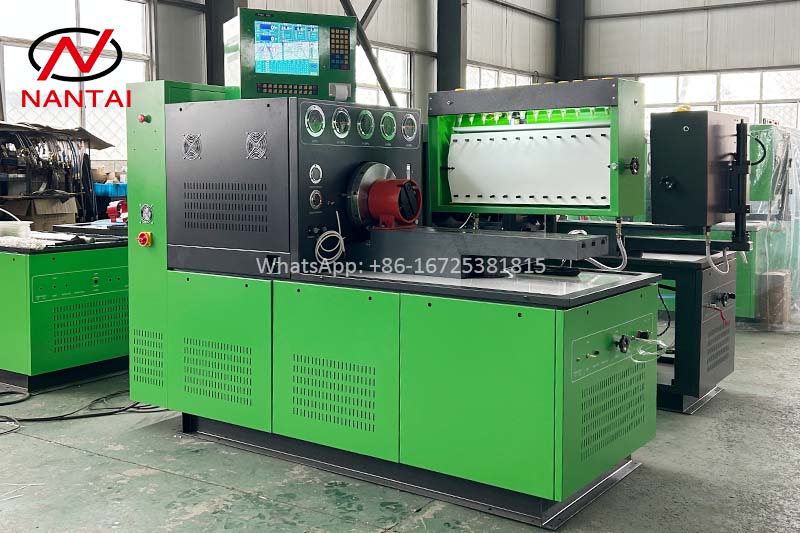

NANTAI NT3000 Customized for Client Diesel Fuel Injection Pump Test Bench with PYBK-3000 Controller
Introduction of NT3000 diesel injection pump test bench
NT3000 series diesel fuel injection test bench is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
According to the customer's customized requirements,
based on the standard function NT3000,

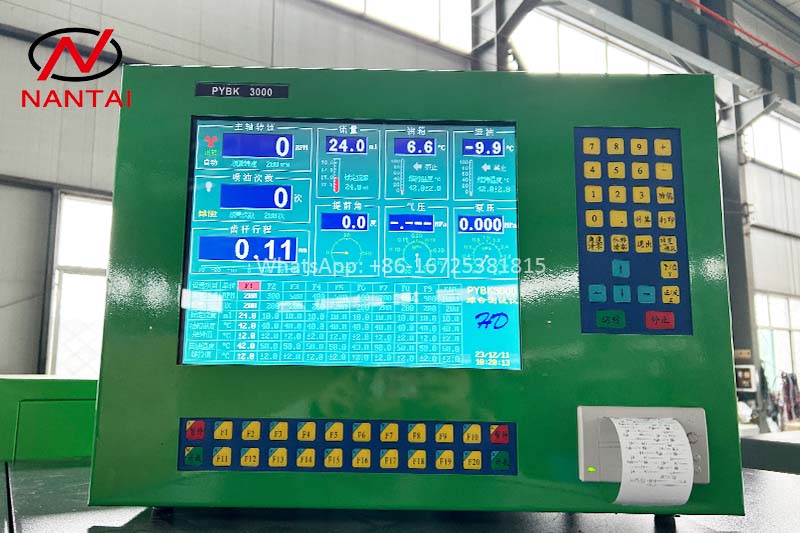

the PYBK-3000 controller is adopted,
the motor is upgraded to 30KW,

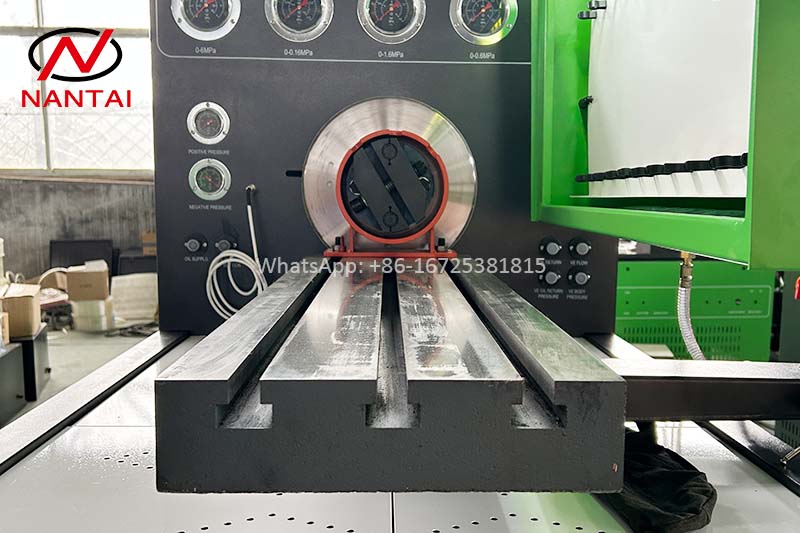

the heavy-duty three-slot workbench is customized,

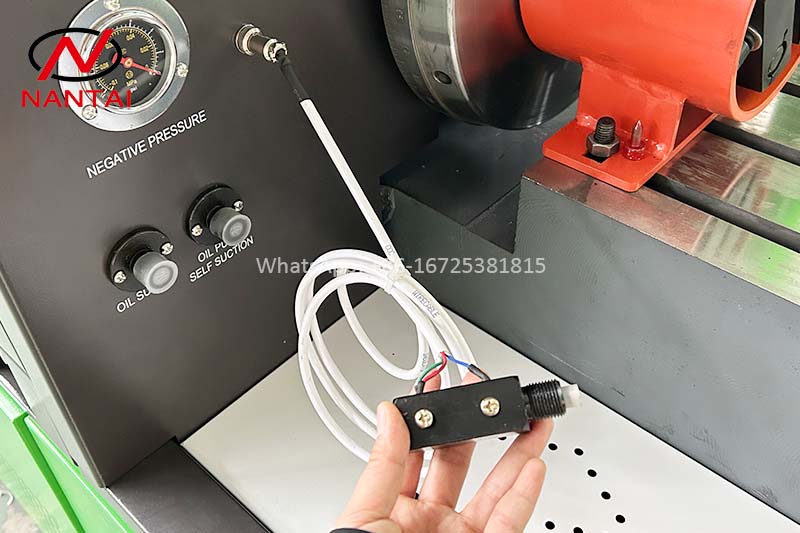

and the gear rod travel function is added.
Main function of NT3000 diesel injection pump test bench
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
Feature of NT3000 diesel injection pump test bench
1. NT3000 use industry computer controller adopted SCM control advance technology.
It can test and control also display temperature, control and display rotate speed, enactment spray times, temperature overtake protect, sensor fall down protect, adapt itself function, and adapt more different kinds of test bench, control different gears.
2. 12 Cylinder oil collection tank, it can be rotated 180 degree, which is convenient for us to operate in multiple directions, make us work more efficiently.
3. Equipped with 12 oil cups and 24 measuring cylinders, each measuring cylinder is 45ml and 145ml, can accurately measure data, on the top of the oil collection tank equipped light, help us to read the data.
4. The cam disc is marked with a scale, and the transparent positioning block can accurately locate the scale. the protective cover can progtect our hands from accidental injury when working on the test bench.
