NANTAI CR966 CRI HEUI CRP EUI EUP Multi-Function Common Rail Test Bench
Functions of CR966 Test Bench

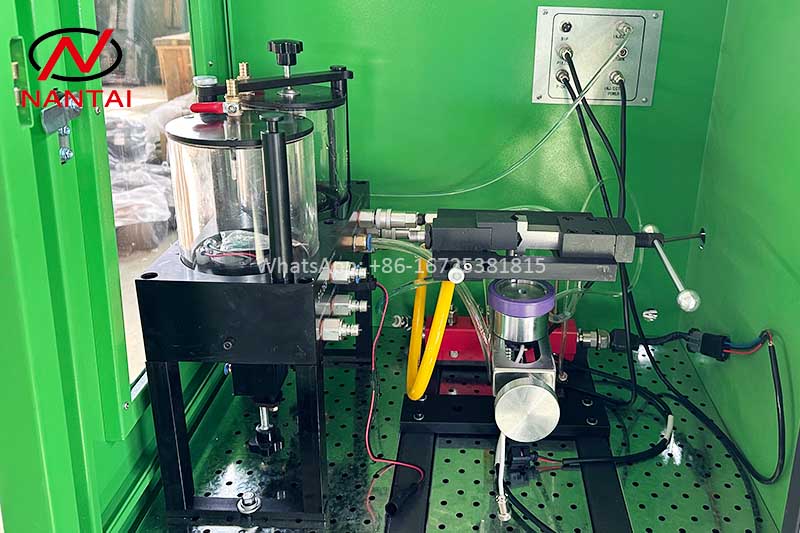

Left area function details:
Standard:
1. Automatically test common rail injectors and piezo injectors.
(One set flow sensor system, can test 1pc injector.)
2. Automatically test the industance of injector solenoid valve.
3. Automatically test voltage-current curve of the injector.
4. QR coding for BOSCH DENSO DELPHI SIEMENS.
5. Automatically test CAT C7/C9/C-9/3126B injectors.
Optional:
6. BIP function for common rail injector.
7. Automatically test 3408 3412 ford6.0 injector.
8. Automatically test 3412E ISUZU injector.
9. Automatically test G2.9 3116 injector.

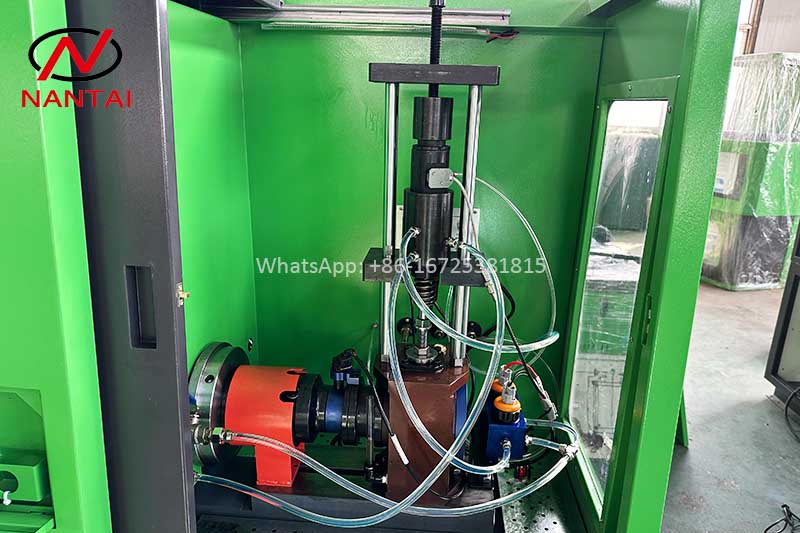

Right area function details:
Standard:
1. Automatically test common rail pumps.
2. Automatically test Denso HP0 pumps.
3. Automatically test CAT 320D Pump.
4. Automatically test EUI/EUP, with EU103 cambox.
Optional:
5. Automatically test Cummins HPI injector (X15/Q60 injector).
6.Automatically test CAT HEUP actuating pump.

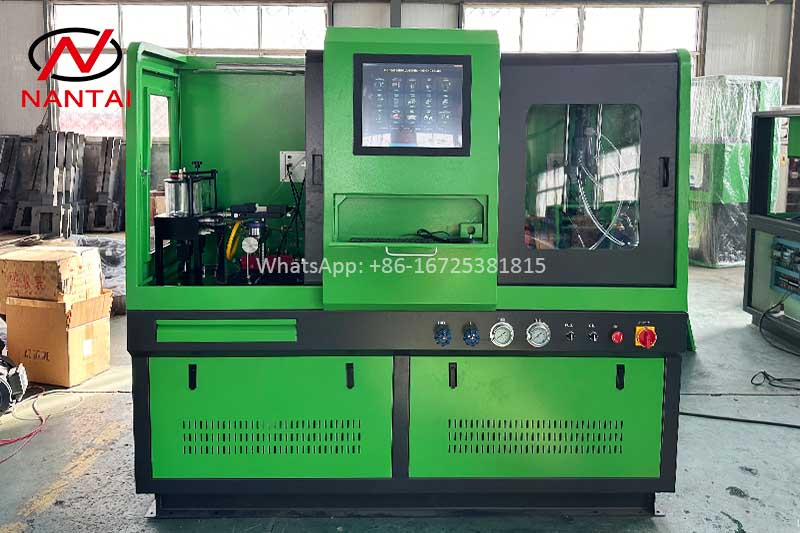

Machine Details of CR966 Common Rail System Test Bench
Technical Parameters of CR966 Common Rail Test Bench
|
Output Power |
4Kw+7.5Kw (11kw 15kw 18.5kw 22kw for optional) |
|
Working Voltage |
380V, 3Ph (220V 3Ph/1Ph for optional) |
|
Pressure Range |
0-2800bar |
|
Motor Speed |
0-4000rpm |
|
Flow Rate Range |
0.008-4L/min |
|
Accuracy |
0.30% |
