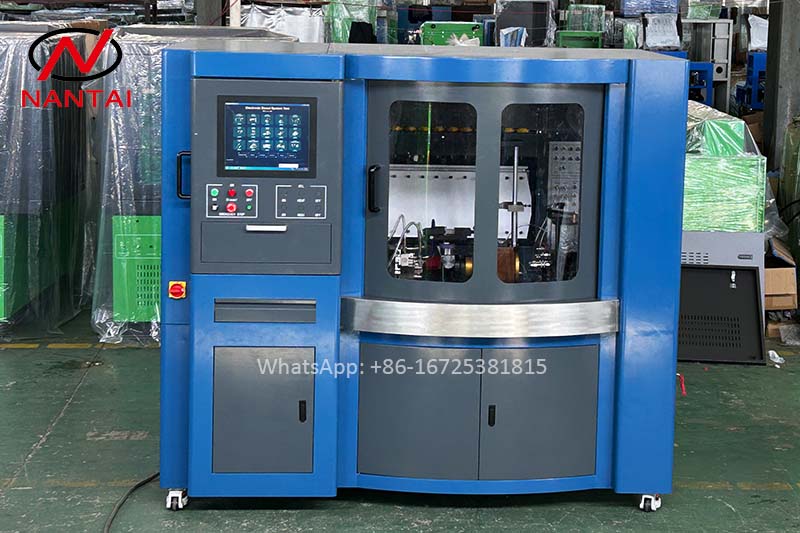

NANTAI CR818 PRO Multi-Function Test Bench Common Rail System Test Bench

Short Description:

CR818 PRO multi-function test bench, integrates test functions such as high-pressure common rail, medium-pressure common rail, and mechanical pump in the same device, all-in-one, very popular during these years.

Can be widely measure Bosch, Denso, Delphi, Siemens and other common rail pump and injector, the software system is equipped with more than 7000 injector datas and more than 1000 pump datas, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.

Send email to us

Product Detail

Product Tags

CR818 PRO Introduction

CR818-PRO multi-function test bench, integrates test functions such as high-pressure common rail, medium-pressure common rail, and mechanical pump in the same device, all-in-one, very popular during these years.

Can be widely measure Bosch, Denso, Delphi, Siemens and other common rail pump and injector, the software system is equipped with more than 5000 injector datas and more than 1000 pump datas, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.

And for CR818 PRO shape, our design team has been upgrade many times, and we also can customized function and shape and color as your request.

CR818 PRO VIDEO: https://youtu.be/TCtcN5siTbk

Technical Parameters

Model	CR818 PRO
Electronic power	3Phase 380V or 3Phase/1Phase 220V
Output power	11KW for standard; 15KW, 18.5KW, 22KW for optional
Motor speed	0-4000RPM
Pressure adjustment	0-2300bar
Flow testing range	0-600ml/1000times
Flow measurement accuracy	0.1 ml
Temperature range	40+-2

Function

Standard:

1.Automatically test common rail injectors and piezo injectors.
(One set flow sensor system, can test 1pc injector.)
2. Automatically test the industance of solenoid valve.
3. Automatically test voltage-current curve of the injector.
4. QR coding for BOSCH DENSO DELPHI SIEMENS.
5. Automatically test mechinaical pumps.
6. Automatically test common rail pumps.
7. Automatically test Denso HP0 pumps.
8. Automatically test CAT 320D Pump.

Optional:
9. BIP function for common rail injector.
10. Automatically test CAT C7/C9/C-9/3126B injectors.
11. Automatically test 3408 3412 ford6.0 injector.
12. Automatically test 3412E ISUZU injector.
13. Automatically test G2.9 3116 injector.
14. Automatically test EUI/EUP, with EU103 cambox.
15. Automatically test Cummins HPI injector (X15/Q60 injector).
16. Automatically test CAT HEUP actuating pump.
17. Automatically test VP37 pump.
18. Automatically test VP44 pump.
19. Automatically test RED4 Pump.
20. One set flow sensor system, 6 injectors can be installed on the test bench together, and the 6 injectors are tested in turn.
21.6 sets flow sensor systems, 6 injectors can be installed on the test bench together, and can be tested at same time.
