NANTAI CR816 Common Rail Injector Pump Test Machine Test Two Injector at same time CR816
CR816 Common Rail Test Bench
Common rail test bench is the professional test bench which is used for testing common rail system, mainly test for common rail pump and injectors.
Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems.
The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.
It guarantees a high level of re-productivity of the measured valve.

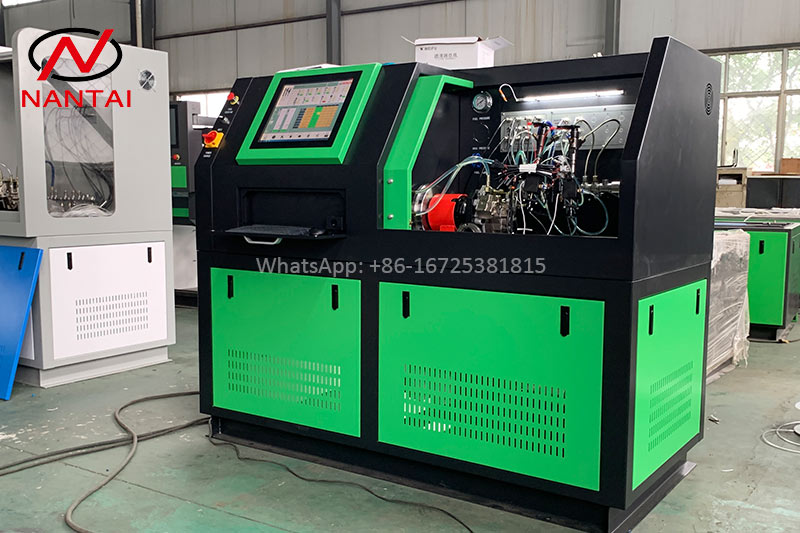

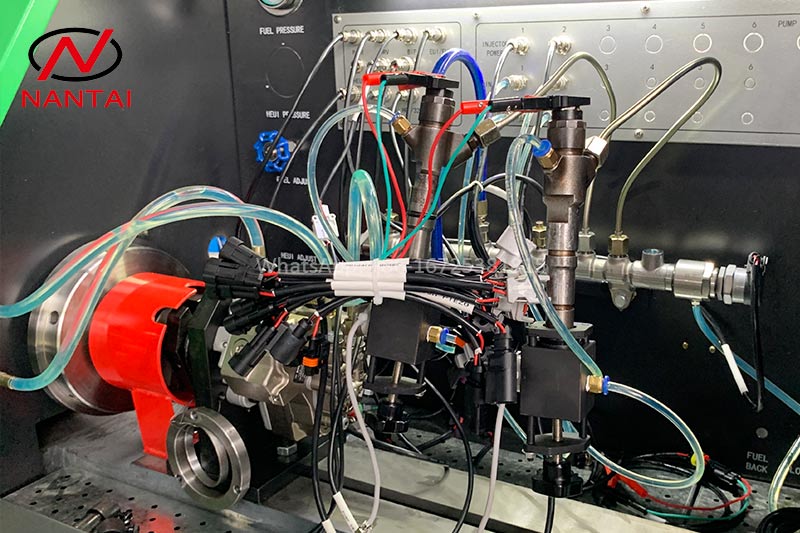

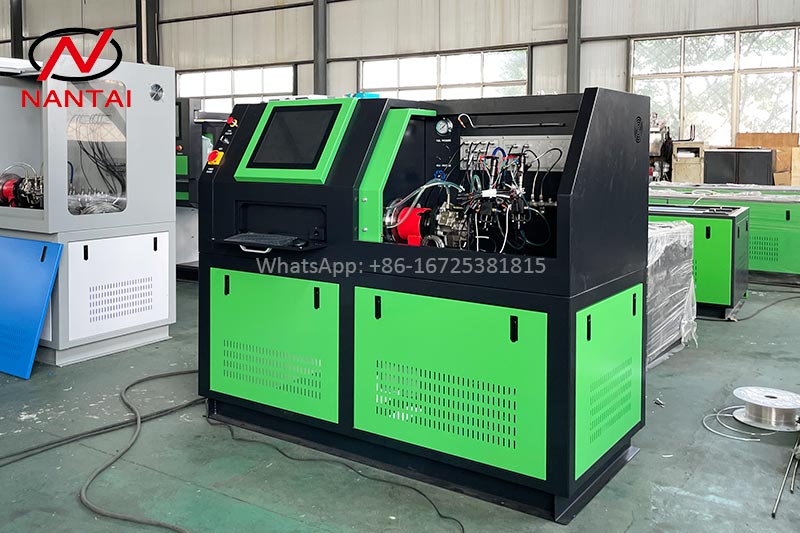

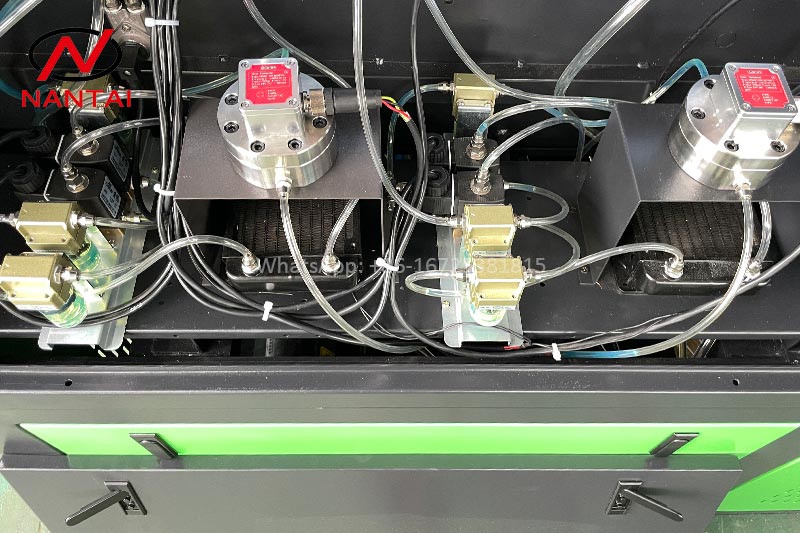

Machine Details of CR816 Test Bench
Technical Parameters of CR816 CRI Test Bench
| Output Power | 7.5kw, (11kw, 15kw, 18.5kw for optional) |
| Electronic Power Voltage | 380V, 3PH / 220V, 3PH |
| Motor Speed | 0-4000RPM |
| Pressure Adjustment | 0-2000BAR |
| Flow Testing Range | 0-600ml/1000times |
| Flow Measurement Accuracy | 0.1ml |
| Temperature Range | 40±2 |
| Cooling System | Air or Forced Cooling |
Our Survice
Providing professional consulting services, customized services, and reception services.
Providing technical support services all life.
The whole machine is guaranteed for 1 year (except for vulnerable parts).
Including Functions
1. Common rail injector testing, such as bosch denso delphi siemens.
2. Piezo injector testing.
3. Injector inductance testing.
4. QR coding for bosch denso delphi siemens.
5. Common rail pump testing.
6. DENSO HP0 pump testing.
Also have these optional functions can choose:
7. BIP function for common rail injector testing. (injector response time testing.)
8. Can test 6 injector, test one by one.
9. Can test 2pc or 4pc injector at same time.
10. CAT HEUI C7 C9 C-9 3126 injector testing.
11. EUI/EUP testing.
12. CAT HEUP C7 C9 pump testing.
13. CAT 320D pump testing.
14. Forced coolling system.
Our Service
Providing professional consulting services, customized services, and reception services.
We have our own engineer team, providing full-life technical support services for test bench, and full-life software free upgrade.
The whole machine is guaranteed for 1 year (except for vulnerable parts).
