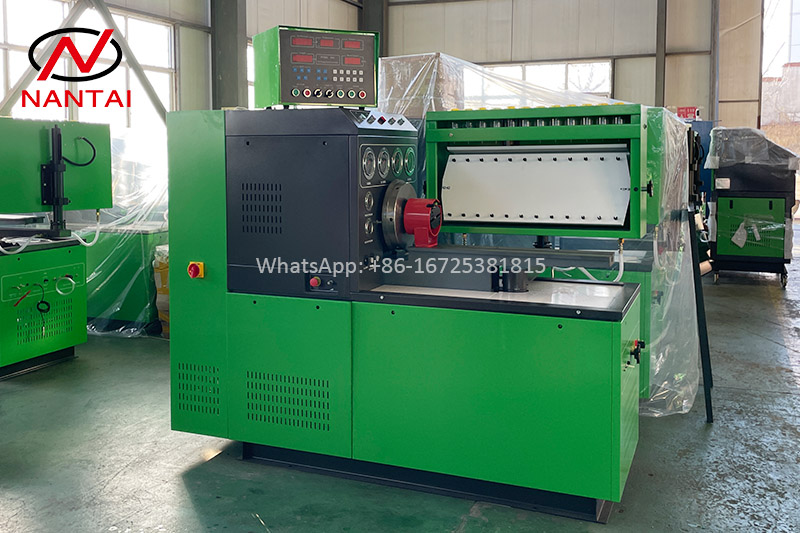

NANTAI 12PSDW-A Diesel Fuel Injection Pump Test Bench with PYBK 988 Oil Pump Test Controller

Short Description:

NANTAI 12PSDW-A Diesel Fuel Injection Pump Test Bench with PYBK 988 Oil Pump Test Controller.
It is designed for customer’s require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.

Send email to us

Product Detail

Product Tags

Introduction of 12PSDW-A diesel fuel injection pump test bench

12PSDW-A diesel fuel injection test bench is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.

According to the customer's customized requirements,

based on the standard function NT3000,

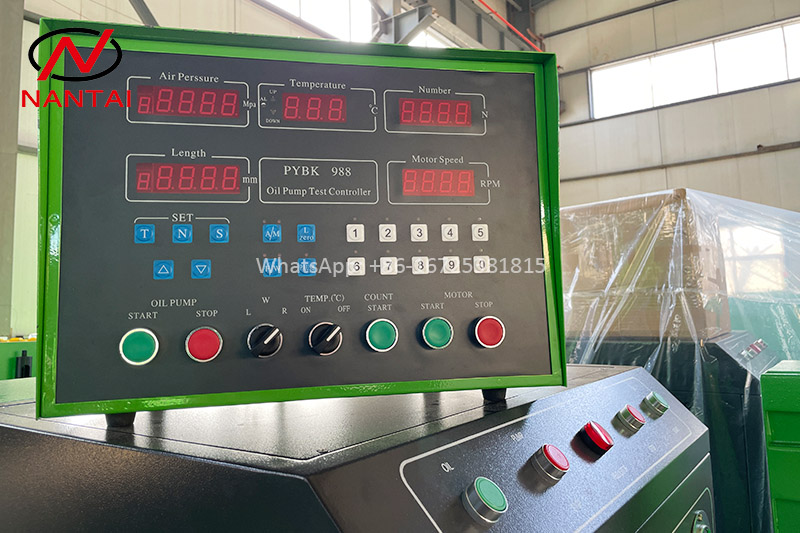

the PYBK-988 controller is adopted,

the motor power is 7.5kw, it can be upgraded to 11kw, 15kw, 18.5kw, 22kw.

Main function of 12PSDW-A diesel injection pump test bench

1.Measurement of each cylinder delivery at any speed.

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5. .Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.(on request)

10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

Feature of 12PSDW-A diesel injection pump test bench

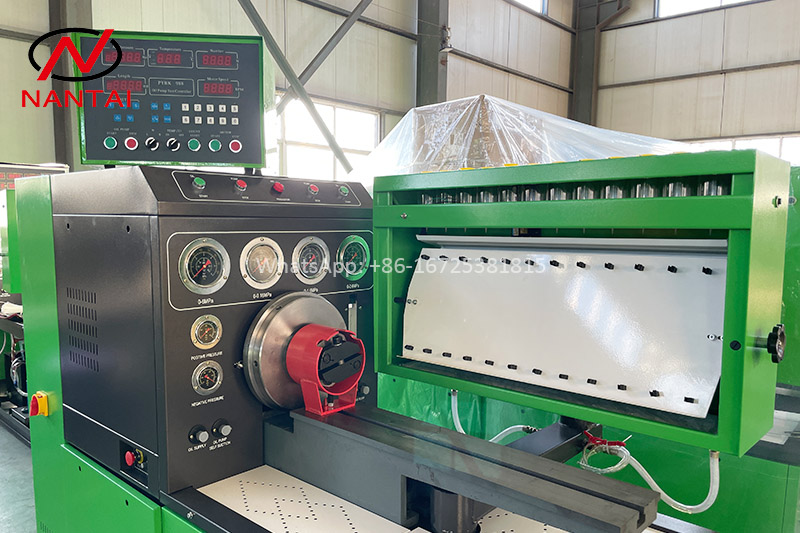

1. 12 Cylinder oil collection tank, it can be rotated 180 degree, which is convenient for us to operate in multiple directions, make us work more efficiently.

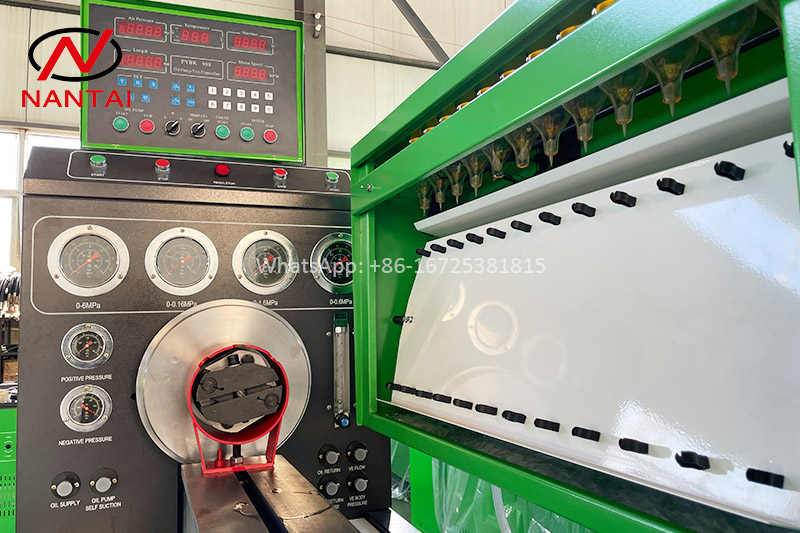

2. Equipped with 12 oil cups and 24 measuring cylinders, each measuring cylinder is 45ml and 145ml, can accurately measure data, on the top of the oil collection tank equipped light, help us to read the data.

3. The cam disc is marked with a scale, and the transparent positioning block can accurately locate the scale. the protective cover can progtect our hands from accidental injury when working on the test bench.
