NANTAI EUS3800 EUI/EUP EUI EUP Test Bench with New Type Cam Box Produced by NANTAI Factory with Measure Cup

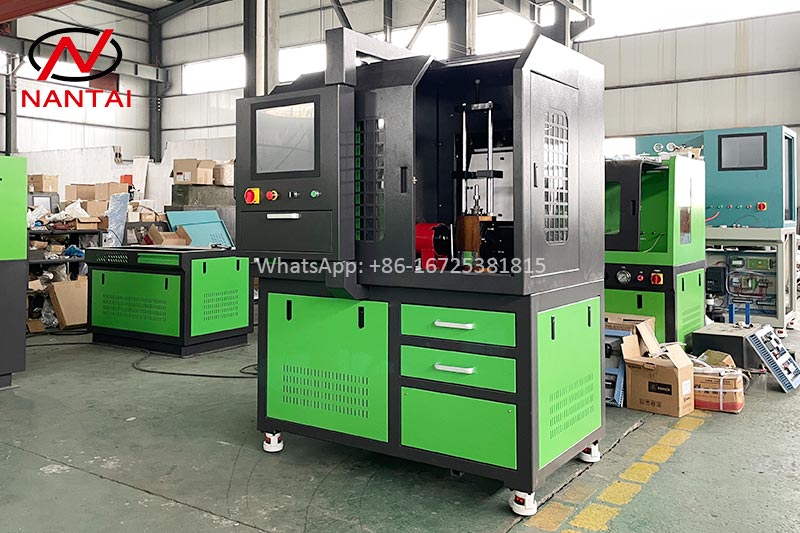

EUS3800 EUI EUP Test Bench Introduction
1. EUS3800 EUI EUP test bench comes with a 7.5kw motor as the base configuration, and can be upgraded to an 11kw or 15kw motor if you need it.
2. With sliding rail sliding door, opening and closing the door is more convenient and takes up less space.
3. On the acrylic glass, we also have a layer of explosion-proof mesh, in order to prevent the cam box from dangerous situations during the work.
4. Using the remaining space of the equipment, 2 drawers have been added, which can easily store some small parts, or accessories such as adapters and oil collectors for the cam box.
5. The rotatable computer, touch screen, also has a keyboard and mouse, it is convenient to adjust the angle at will when working.
EU100 CAMBOX
EU100 CAMBOX: Classical cambox, has 23 kinds of adapters, and 4 kinds of camshaft, need to change camshaft for different injectors.
EU102 CAMBOX
EU102 CAMBOX: Classical cambox, has 23 kinds of adapters, and 4 kinds of camshaft, need to change camshaft for different injectors. Including BIP function (injector response time testing).
EU101 CAMBOX
EU101 CAMBOX: Easy for operation, has 15 kinds of adapters, only one cam with many teeth, need to change different teeth for different injectors. Including BIP function (injector response time testing).
EU103 CAMBOX
EU103 CAMBOX: Newest type, easy for operation. has 20 kinds of adapters, and 7 kinds of cam, need to change cam for different injectors. Including BIP function (injector response time testing).
